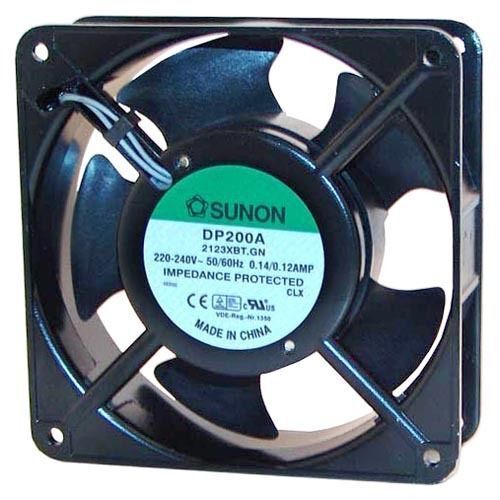

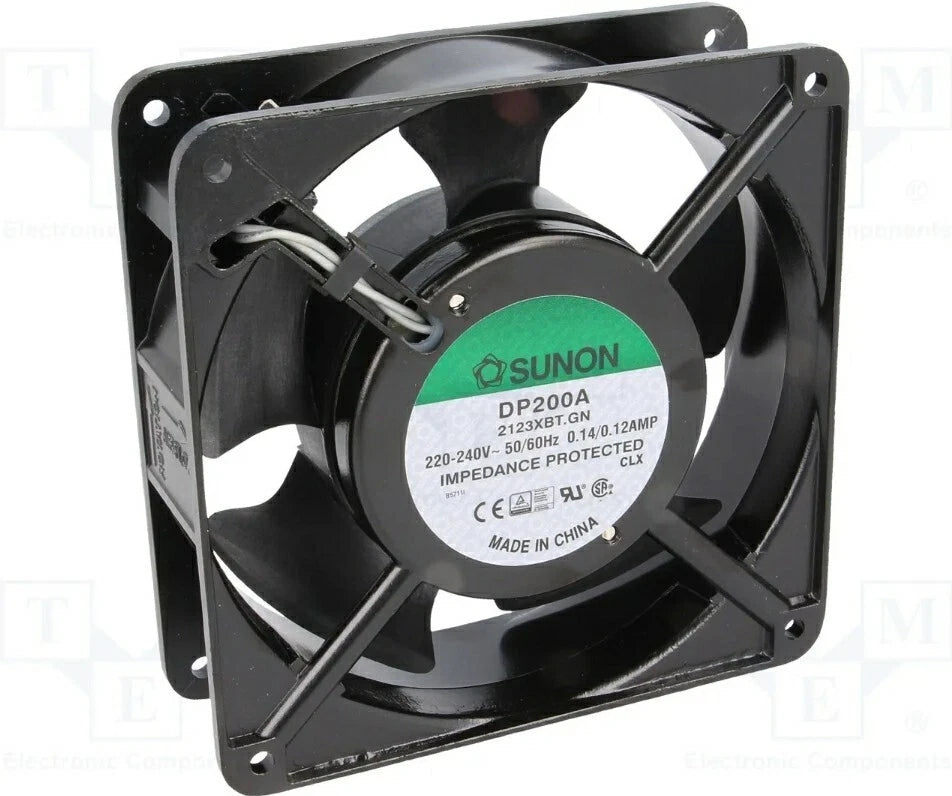

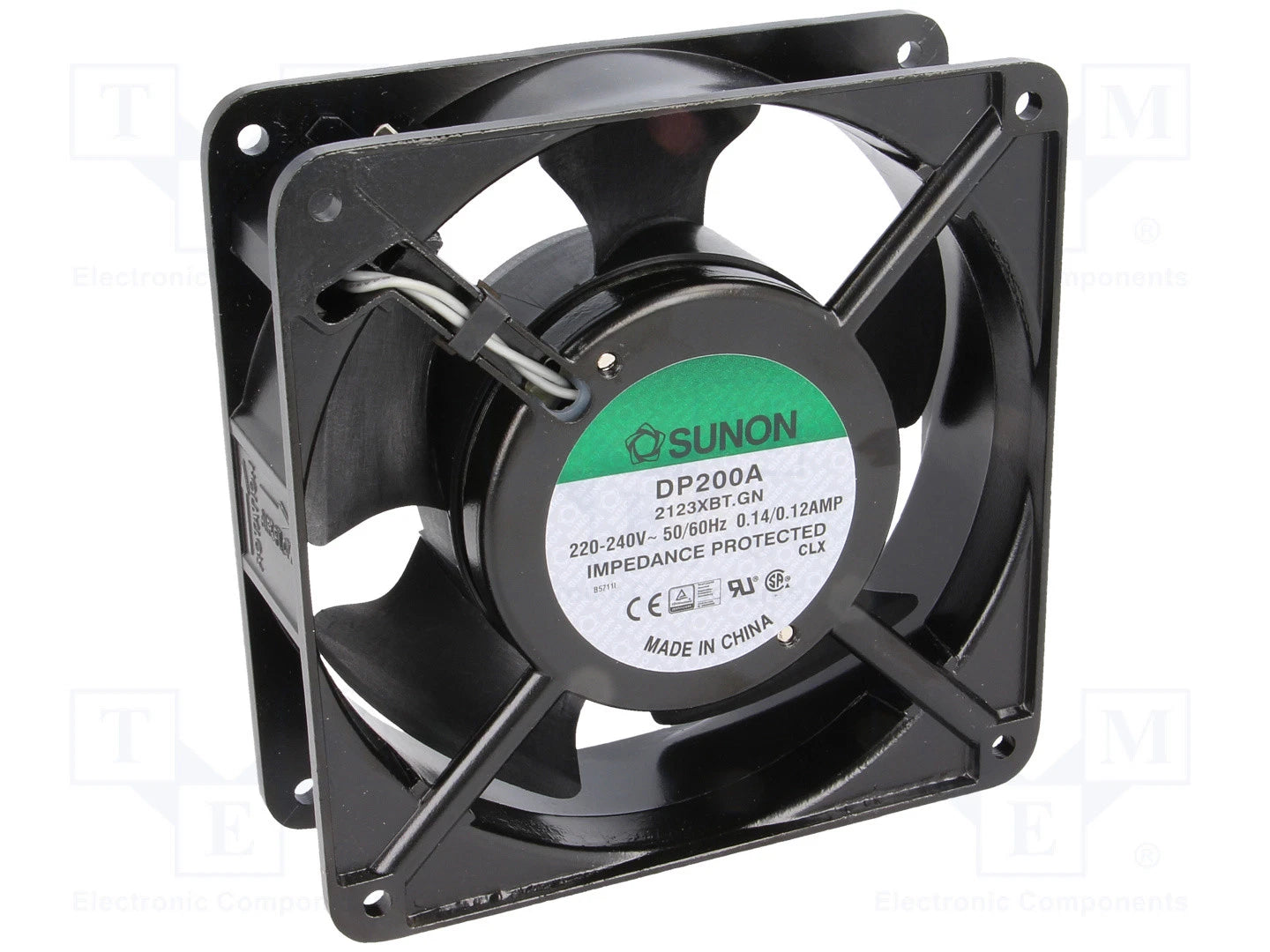

Blodgett Genuine Part - BL-260 - Axial Cooling Fan - 230V - OEM 23034

This fixed-price listing is for 1 x Axial Cooling Fan. This genuine Blodgett replacement fan is designed for reliable oven cooling performance, ensuring consistent airflow and temperature regulation in demanding commercial kitchen environments. Manufactured by SUNON, it offers high efficiency, low noise, and durable construction for long service life.

Key Features
• Genuine Blodgett replacement part
• High-efficiency axial fan for cooling applications
• Ball bearing design for longer lifespan
• Low-noise operation (45dBA)
• Robust aluminium enclosure with thermoplastic impeller
• UL94V-0 flammability rating

Specifications
• Manufacturer: SUNON
• Type: AC axial cooling fan
• Supply voltage: 230V AC
• Frequency: 50Hz
• Dimensions: 120 x 120 x 38mm
• Power consumption: 22W
• Current rating: 140mA
• Airflow: 165 (±10%) m³/h
• Noise level: 45dBA
• Rotational speed: 2850rpm
• Bearing type: Ball bearing
• Weight: 550g (gross 0.51kg)
• Operating temperature: -10°C to 70°C
• Static pressure: 8.63mm H₂O
• Insulation resistance: ≥500MΩ
• Insulation class: B
• Connection: 2.8 x 0.3mm terminals

Compatible Models
B14-G, B14G, BC-14E, BC-14G, BC-20E, BC-20G, BC14E, BC14G SERIES, BC20G, BCS-6, BCS-8DS, BCS-8E, BDO-100-E, BDO-100E, BP-100, BP-50, CNV-14E, CNV-8E, CNV14E, COS-101, COS-101NSF, COS-101S, COS-101SNSF, COS-20, COS-20NSF, COS-5H, COS-5HA, COS-5HB, COS-6, COS-6NSF, COS-8E, COS-8EDS, COS-8GDS, CTB, CTB POPEYES, CTB SERIES, CTB WENDYS, CTB XCEL, CTB-AP, CTB-G, CTB-GFB, CTB-Series, CTB1, CTBR, CTBR POPEYES, CTBR SERIES, CTBR WENDYS, CTBR XCEL, CTBR-AP, CTBR-G, CTBR-GFB, DFG-100, DFG-200, DFG-50, MARK V series, MARK V KFC, MT1820E, MT2136E, MT2136G, MT3240E, MT3240G, MT3255, MT3270, SHO series, ZEPHAIRE series and more.
